GIOTTO
65,000 colors to brighten your elevator
We’re excited to announce the birth of
a new generation of our GIOTTO TFT INDICATOR.
A best-seller in all its sizes!
SAFE & ALWAYS AVAILABLE
USE IT WITH ANY CONTROLLER
One Giotto, different interfaces to use it with any controller!
The new generation of Giotto indicators
The new generation of our Giotto is now more user-friendly and performant, from the moment you purchase it, through the configuration and customization process, to when your clients start using it!

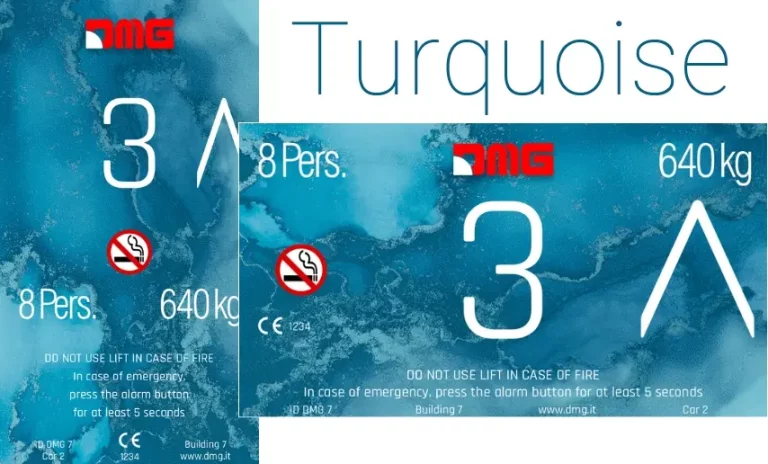

NEW ready-to-go templates! 5 brand-new graphic themes preloaded on our devices (plus our Red Passion and Blue Shades templates, which are still available in the themes library)
23 different Fonts available for the FLOOR NUMBER! (or you can upload your favorite Font)
18 different shapes of DIRECTION ARROWS to choose from
COLOR and TRANSPARENCY of both number and arrow can be set according to your preference
no limitation to the number of floors you can associate images to; it all depends on the protocol you’re using (image associated to a specific floor will appear for a max time of 10sec and can serve as information to the users or to display promotional messages)
add your company LOGO to the screen and change its size just dragging the corner of the logo area
One safe login & One place
The CLOUD BASED MosaicONE platform enables you to create powerful backgrounds and associate each floor to a specific different image to display for max 10 seconds at floor arrival (to inform users or advertise). You can either use preloaded graphic themes or create custom designs. Manage all your devices from one browser login, or delegate responsibility to specific people in your team with different levels of permissions.
NOTE: earlier provided Giotto indicators need to be edited with our Giotto Mosaic SW
Any size you like
Screen resolution:
1024 x 600 pixel
Screen size:
222mm x 124,5mm
Horizontal & Vertical layout
__________
IP41 protection
(IP44 on request)
Screen resolution:
1024 x 600 pixel
Screen size (EN81-70 + EN81-72):
156,5mm x 88,5mm
Screen size (EN81-71):
166,4mm x 105,4mm
Horizontal & Vertical layout
___________
IP44 protection for all the versions (standard, EN81-71 class2 and EN81-72)
640 x 480 pixel
Screen size
(EN81-70 + EN81-72 versions):
115,3mm x 87,1mm
Only horizontal layout.
__________
IP44 protection
480 x 272 pixel
Screen size:
110,6mm x 62,6mm
Horizontal & Vertical layout
__________
IP44 protection
480 x 272 pixel
Screen size (EN81-70 + EN81-72 versions):
98,7mm x 57,2mm
Glass size (EN81-71 version):
109mm x 67,5mm
Horizontal & Vertical layout
__________
IP44 protection for all versions (standard, EN81-71 class2 and EN81-72)
Loud & clear
INTEGRATED VOICE SYNTH
Giotto is equipped with an integrated voice synthesizer, already preset.
INTERNAL FLOOR & SERVICE MESSAGE LIBRARY
You can modify floor messages through the Mosaic software, starting from the existing message library.
You can also modify audio levels and enable/disable floor gong.
AUDIO OUTPUT FOR EXTERNAL SPEAKER
For a better acoustic effect, you can use the external speaker output on the back of the display.

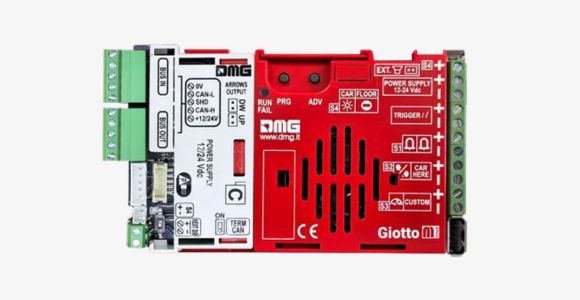

Use Giotto with any controller
1 LINE per FLOOR
1 LINE per SEGMENT
GRAY Code
BINARY Code
DMG 3 WIRES
DMG RS485
3rd parties proprietary RS485 protocols
DMG CAN
CAN OPEN LIFT CIA 417
3rd parties proprietary CAN protocols
In elevators with no position indicator protocol available, our display can work with its internal positioning sensor (APS).
For more details visit the technical section on DIDO
EN81-71 CLASS2 and EN81-72

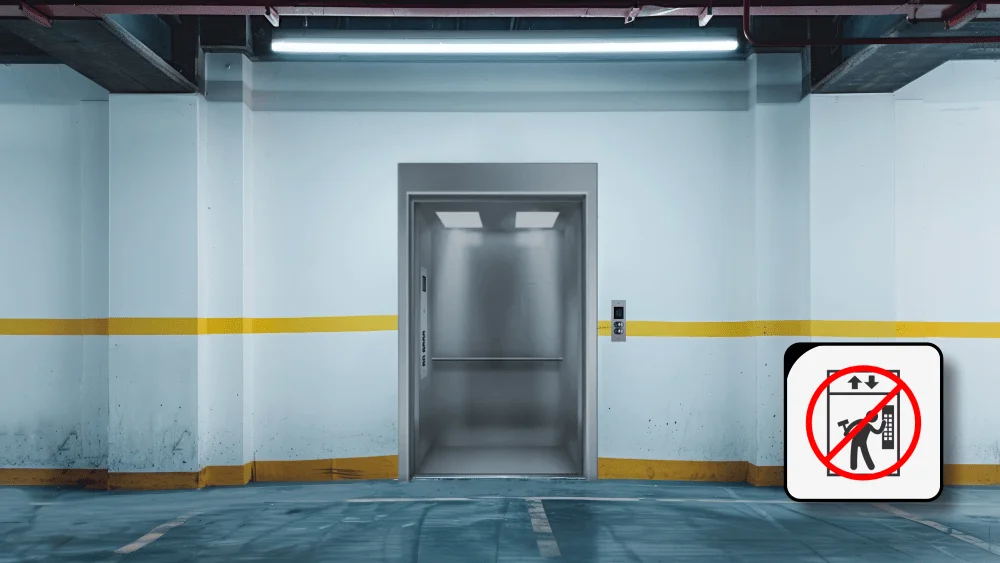

EN81-71 class2 • Vandal Proof
Our 4.3“ and 7“ Giotto position indicators are also available in a special version fully compliant to EN81-71 Class 2 norm, granting resistance to water sprays, flames and impacts.
This version is also IP44 protected and is not compatible with our surface mounted lines of fixtures.
EN81-72 • Fire Fighters
We offer Fire Fighters fixtures solutions, which include lift indicators fully compliant to the European Standard EN81-72.
The Giotto 7“, 5.6“ and 4.3“ are certified according to the requirements of the above standard that sets the safety rules for the construction and installation of Firefighters lifts.
