RAFFAELLO TFT INDICATORS
Beauty and technology with a competitive price
ALL DMG’s STYLE in this versatile and cost conscious position indicator
PICK THE RIGHT RAFFAELLO
Raffaello display comes in many different sizes and covers several needs.
RAFFAELLO 2″
Screen size: 44mm x 34mm
Screen resolution: 320 x 240px
RAFFAELLO 2,8″
Screen size: 61mm x 46mm
Screen resolution: 320 x 240px
RAFFAELLO 4,3″
Screen size: 99mm x 58mm
Screen resolution: 480 x 272px
RAFFAELLO 5″
Screen size: 111mm x 63mm
Screen resolution: 480 x 272px
Raffaello can be mounted and can operate either horizontally or vertically.
No limits to creativity with our Graphics Themes
Raffaello can display either plain colour background or one of the gradient style backgrounds:
Red Passion, Gray Goose, Blue Shades.
The onboard menu allows to manage main service messages, modify fonts, colours and backgrounds.
You can as well customize your indicator using our RAFFAELLO CODER, which allows you to have control of many features of this versatile indicator.
Contact your Sales Area Manager to know more.
AT FLOOR OR IN THE CAR
From the small 2’’ or 2.8’’ fitting a Landing Operating Panel to the bigger version in 4.3’’ or 5’’ fitting in a Car Operating Panel, Raffaello covers several needs
![](https://www.dmg.it/wp-content/uploads/2021/10/220204_0_www_Raffaello_Floor-3.jpg)
For displays at floors the screen is equipped with symbols such as
Alarm bell,
Car at floor (55×55 and 68×71 versions only)
Out of service
Dimensions for each size:
2″ (44 x 34mm)

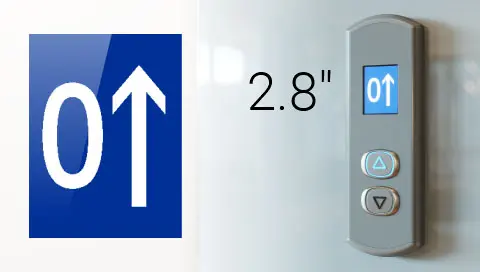

2.8″ (61 x 46mm) – the 2.8″ can be used for car applications as well!
![](https://www.dmg.it/wp-content/uploads/2021/10/220204_0_www_Raffaello_Car.jpg)
For displays in the lift car: the screen is equipped with typical EN81-70 symbols
Alarm sent
Communication established
Overload
Dimensions for each size:
2.8″ (61 x 46mm)
4.3″ (99 x 58mm)
5″ (111 x 63mm)
RETROFITTING EXISTING DISPLAYS
The Raffaello is designed to fit the cut-outs of some of DMG’s best-selling displays.
The Raffaello D1 can be used to retrofit the D13 position indicator manufactured by DMG since year 2000. It perfectly fits into the 55x55mm cut-out of the D13 and the existing cables can be connected one by one to the terminals of the new display.
The DZ Front mounted display can easily replace DMG’s DZ1 LCD display in its front mounted version.
Other Features
USE THE RAFFAELLO WITH ANY ELEVATOR:
Our display can work with several different protocols:
Parallel and Serial…
Read more
Parallel
1 LINE per FLOOR
1 LINE per SEGMENT
GRAY Code
BINARY Code
Serial
DMG 3 WIRES
DMG RS485
3rd parties proprietary RS485 protocols
DMG CAN
CAN OPEN LIFT CIA 417
3rd parties proprietary CAN protocols
In elevators with no position indicator protocol available, our display can work with its internal positioning sensor (APS).
For more details visit the technical section on DIDO
Read less
ALSO VANDAL RESISTANT
The 2.8’’ and 4.3’’ feature a EN81-71 Class 2 compliant front protection screen, thus allowing the use of these indicators in risky environments or public areas such as train stations, airports etc.
The VR screen does not affect the outside look of the indicator.
